Specifications
HSP-7 wet type shotcrete machine
1.Wet type
2.Capacity 5-7m3/h
3.Motor power:7.5kw, 380V
1.Wet type
2.Capacity 5-7m3/h
3.Motor power:7.5kw, 380V

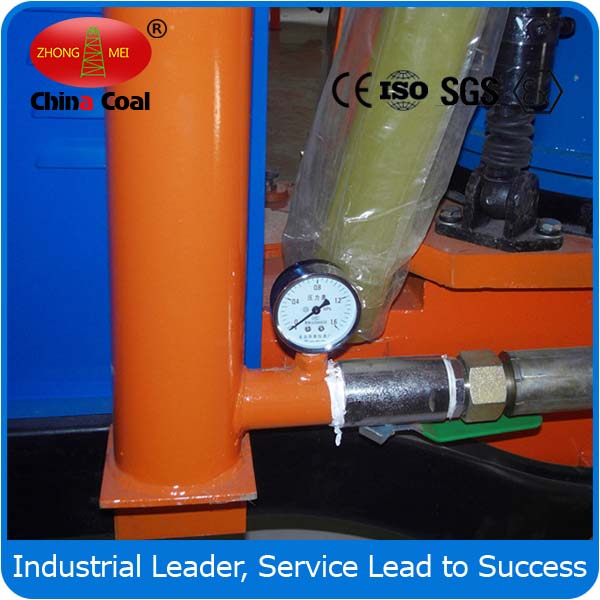

HSP-7 Wet type shotcrete machine
Specifications HSP-series wet shotcrete machine is an advanced and high efficient concrete spraying machine, d has been designed especially for spraying of concrete . It has the advantages of low dust , low rebound , high-strength concrete , simple operation , convenient for maintaining , prolong operation life etc.
The machine , combined with dosing unite , is suitable for manual spraying or by means of a robotic arm .
It is used for the application of shotcrete in rail and road tunnel , subway engineering , hydro-power engineering, underground engineering , mine gallery and more concrete engineering.
Wet shotcrete is use the mixed concrete, and then add accelerator.
Model
|
HSP-5
|
HSP-7
|
HSP-9
|
Output
|
4-5m³/h
|
5-7m³/h
|
6-9m³/h
|
Max. Convey Distance
|
Horizontal:30m; Vertical: 20m
|
Horizontal:30m; Vertical: 20m
|
Horizontal:30m; Vertical: 20m
|
Max. Aggregate Size
|
Ø 15mm
|
Ø 15mm
|
Ø 15mm
|
Hose Inner Size
|
Ø 51mm
|
Ø 51/64mm
|
Ø 51mm/64mm
|
Operating Pressure
|
0.3~0.6MPa
|
0.4~0.6MPa
|
0.4~0.6MPa
|
Air Consumption
|
10-15m³/min
|
10-15m³/min
|
10-15m³/min
|
Rotor Diameter
|
Ø 438mm
|
Ø 480mm(160)
|
Ø 480mm(175)
|
Average Rebound Rate
|
≤10%
|
≤10%
|
≤10%
|
liquid accelerator additive amount
|
0.3-0.7%
|
0.3-0.7%
|
0.3-0.7%
|
Motor Power
|
Y132m-6-5.5KW
|
Y160m-6-7.5KW
|
Y160m-6-7.5KW
|
Voltage
|
380V or as Your Request
| ||
Accelerator metering pump
|
Air Motor
|
Air Motor
|
Air Motor
|
Dimension(mm)
|
1950*800*1280
|
2050*800*1350
|
2000*800*1300
|
Net Weight
|
700kg
|
900kg
|
900kg
|
Wheel
|
Nylon Wheel; Rubber Wheel; Skid Wheel; Rail Wheel
| ||
