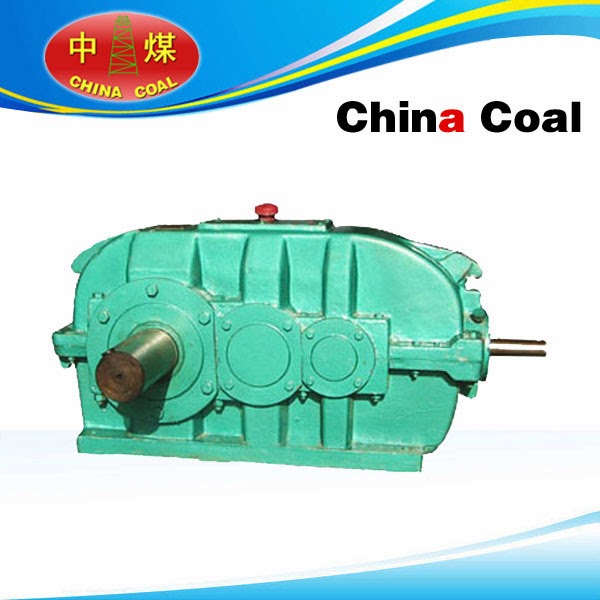

DCY Tooth Surface Reductor Introduction
DCY tooth surface reductor slow down the way many, many, including gear, gear, worm gear drive, an asteroid or bevel gear, gear and other article through pulley, refining, or cylindrical, machine type DCY ball reducer, reducer. But the most common is ordinary gear to slow down, and DCY reducer and someone called "gear box".
DCY tooth surface reductor in order to input and output shaft is located in the state of vertical outer meshing gear transmission mechanism, the main transmission parts adopt high quality alloy steel manufacturing. Gear by carburizing, quenching, grinding process manufacturing, precision level 6.
DCY tooth surface reductor with high bearing capacity, long life, small volume, high efficiency, light weight, etc.
DCY Tooth Surface Reductor Feature & Application
DCY Tooth Surface Reductor be use for the input shaft and output shaft is vertical arrangement of transmission device. Etc. Various kinds of transport machinery is mainly used in belt conveyor, can also be used in metallurgy, mining, chemical, coal, building materials, light industry, oil and other general machinery.
Application
1、Highest speed reducer input shaft speed is not more than 1500 r/min.
2、Gear circumferential velocity is not more than 20 m/s.
3、 Working environment temperature for - 40-45 ℃. When the environment temperature is lower than 0 ℃, before the start of lubricating oil should be heating distribution heat pipe (the other).
Hard Tooth Surface Reductor Type & Tag
DBY type for the secondary drive hard tooth surface gear reducer. DCY type 3 is hard tooth surface gear reducer drive, the first level transmission for gleason spiral bevel gear, the second and third level transmission of involute cylindrical helical gear.
Reducer by form the shaft can be divided into I, Ⅱ, Ⅲ, Ⅳ four assembly type, according to the output shaft rotation direction can be divided into clockwise and counterclockwise (N) (S) two kinds.
Model：
Second level : DBY160、 DBY180、DBY200、DBY224、DBY250、DBY280、DBY315、DBY355、DBY400、DBY450、DBY500、DBY560
Three-level : DCY160、DCY180、DCY200、DCY224、DCY250、DCY280、DCY315、DCY355、DCY400、DCY450、DCY500、DCY560、DCY630、DCY710、DCY800
